Column Box Profile

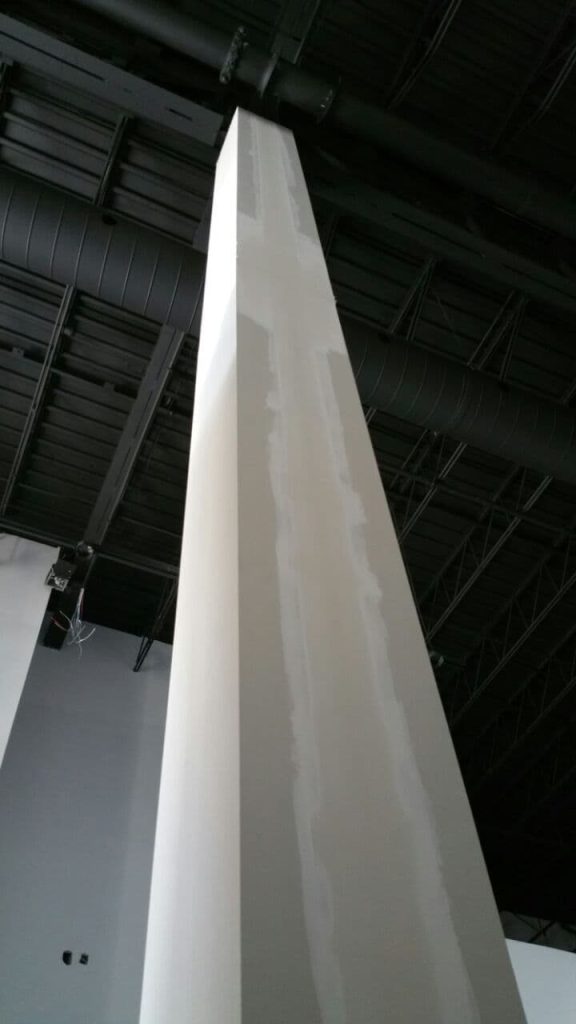

The Folded Column Box Profile is a precision-engineered prefabricated drywall assembly designed to easily wrap steel columns, whether for aesthetic or fire-rating purposes. The profiles wraps around the column with minimal framing, creating the perfect finished square with only one flat joint to tape.
In situations where a multi-hour fire rating is required, multi-box kits can be created that next within one another when assembled to achieve 2hr+ fire-ratings.
BASIC USES
- Boxing vertical structural columns
- Suitable for both commercial and high-end residential environments
ADVANTAGES
- Pre-folded for perfect geometry and edge alignment
- Reduces onsite labour and finishing work
- Reduces framing requirements by 50%
- Manufactured with durable Type X gypsum core
- Compatible with standard framing and finishing systems
- Custom lengths available
- GREENGUARD Gold Certified for indoor air quality
INSTALLATION
- Install on steel or wood framing, verifying that there is sufficient backing to catch the edge of the profile
- Secure using drywall screws through flat section
- Tape and finish the transition edges per GA-214 Level 4 guidelines
- Refer to GA-216 for installation best practices
INSTALLATION
- Install on steel or wood framing, verifying that there is sufficient backing to catch the edge of the profile
- Secure using drywall screws through flat section
- Tape and finish the transition edges per GA-214 Level 4 guidelines
- Refer to GA-216 for installation best practices
